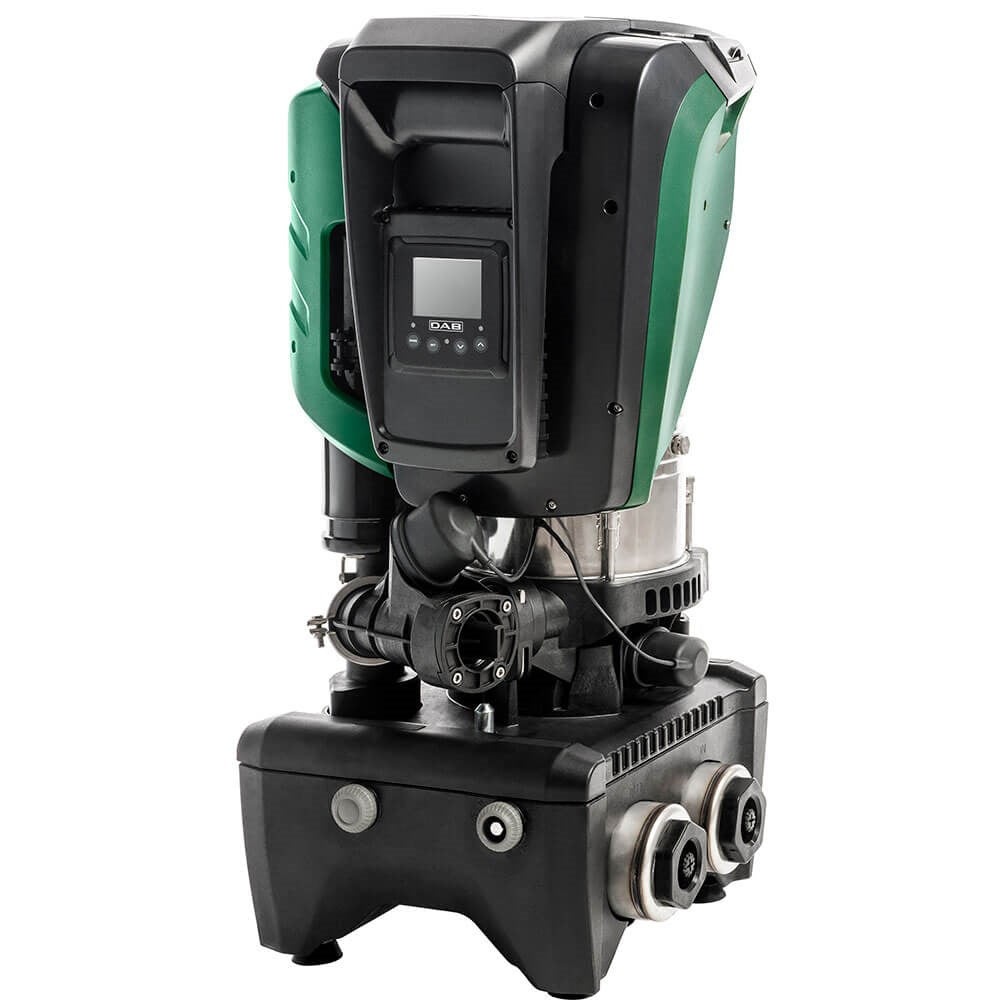

Dab ESYBOX Max - Single Pump With Dock Pressure Pump System 290LPM, Max 80m Head
Dab ESYBOX Max - Single Pump With Dock Pressure Pump System 290LPM, Max 80m Head
The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.
Integrated pumping systems for pressurisation in commercial building services industry and for rural and horticultural applications. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of large residential, medium/large apartments and high rise buildings (even over 14 floors).
Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site, even by one person. The variable frequency drive keeps the pressure constant according to the load and thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.
Brand | DAB Pumps |
Bar | 7.8 |
Approval | Approved For Drinking Water |
Flow Range Category | c. 200 - 299 L/min |
Flow Rate (L/min) | 290 L/min |
Kilo Watts | 2.68 kW |
Head Range Category | c. 60 - 99 m |
Max Head (m) | 80 m |
Volts | 240 V |
